TSM Removable Chassis PCB Connector Set


I very much enjoy a removable chassis but there are opportunities that arise when using them. Shorts can occur if pins are accidentally touched to metal surfaces or to the wrong component, and they are often limited to a certain number of pins and thus functions. So we designed "one PCB to rule them all" ;) While this setup does have many, many thru hole connections, they are certainly not all required to function.

Pick and choose any/all that are required for your build and take comfort knowing that should you want to add functionality like OLED, BT, or additional data pixels are you only a few solder joints away!

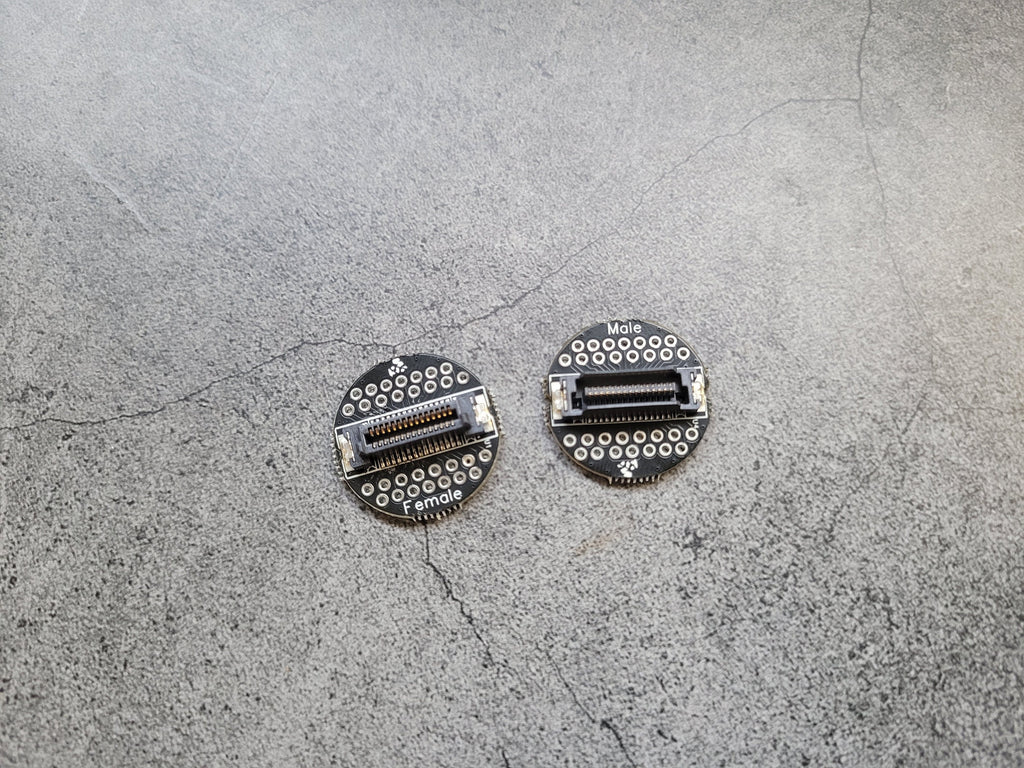

PCB OD - 24mm
PCB Combined Height - 8.30mm
Total Solder Joint Count - 32

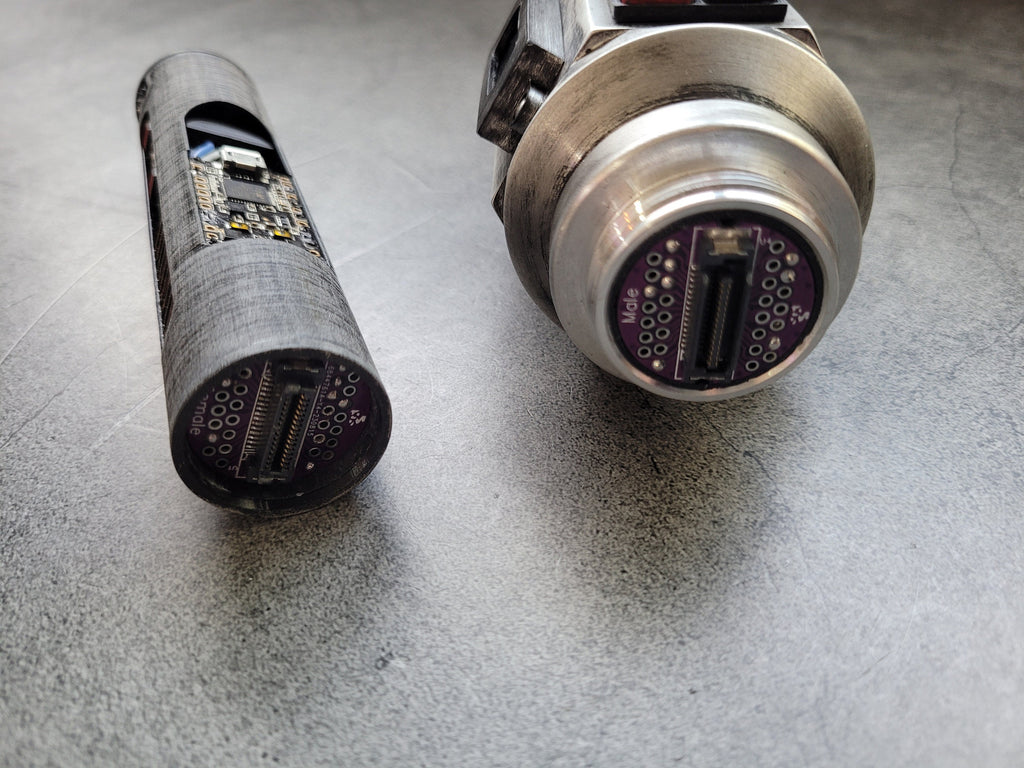

**Cut outs on the edge of the PCB allow for the use of small screws to secure to a chassis or threaded chassis inserts where applicable**
These connectors have been thoroughly tested up to 15A - For standard pixel setups these are a dream. If you intend on using unprotected cells that are capable of outputting 30+ Amps to power insane builds such as 4 or 5 strip blades, you may want to look elsewhere or direct wire to your components.

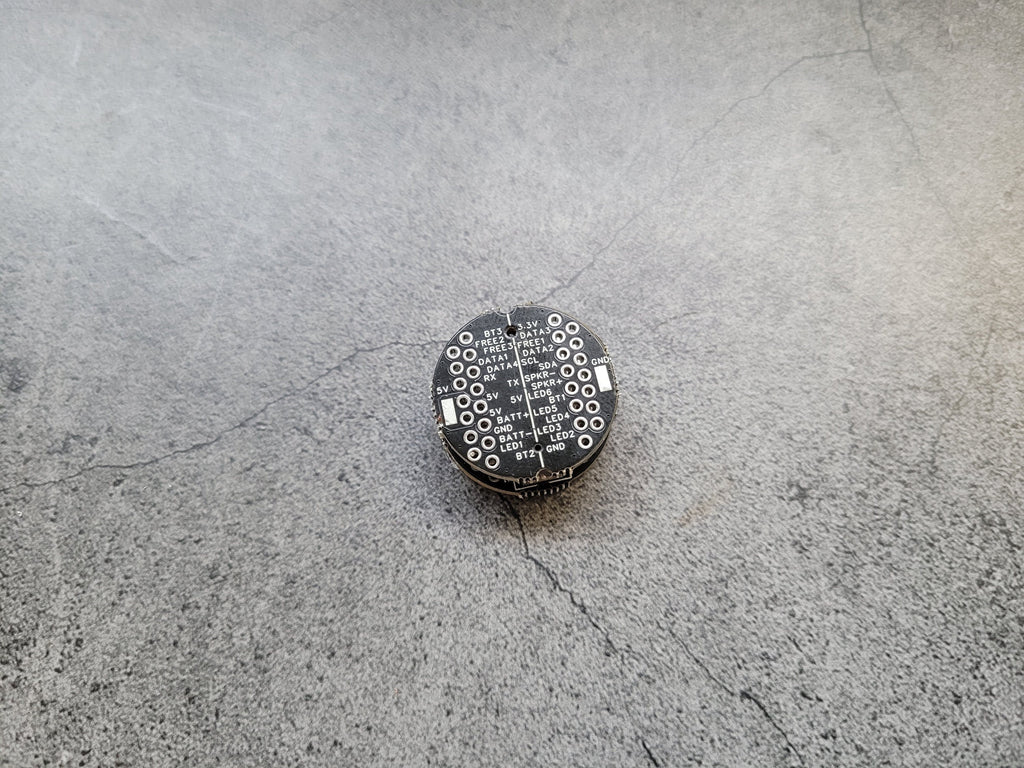

Available Pads (Labeled):
LED 1, 2, 3, 4, 5
Data 1, 2, 3, 4
Speaker Pads
BT 1, 2, 3
5V (4)
3.3V (1)
Batt + (1)
Ground (3)
Free Use (3)
