TSM Multi-Button Rotary Switch & USB-C Charge Assembly (LGT/Nexus compatible)


For multiple years those in the saber community have wanted a new switch solution to replace the standard 12mm AV Switch on their LGT/Nexus products. Well, now you have another option! This is a very versatile switch setup as you can use the included red anodized lever to activate or 3D/Resin print any style switch you can think of. The options for customization are endless!

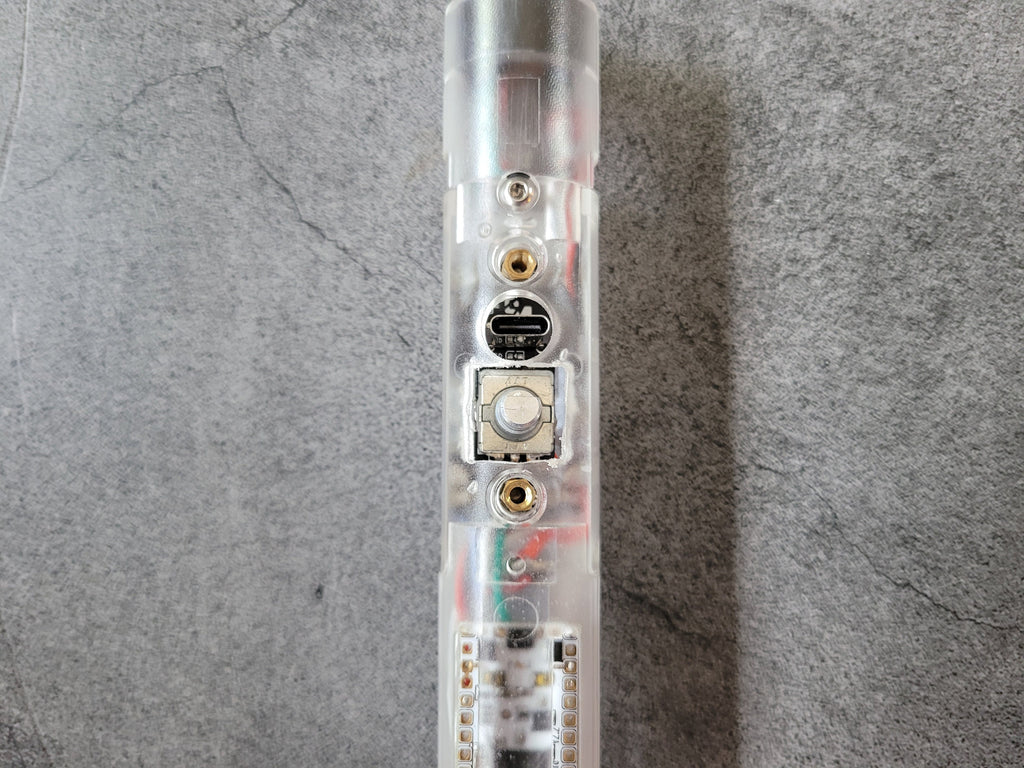

**Note - These are designed for use with the new LGT/Nexus setups that have a dedicated USB-C access hole in the handle/switch area and are raised via the rear M3/M4 set screw from the back of the switch area. They will still work with the older Switch/Recharge port setups, but require 10mm stand-off's (Included) and filing/cutting of the plastic lid (See photos for details) of the core to be able to raise the switch up to the proper height. 10mm stand-offs are included with each purchase**

This switch assembly can operate as a one, two or three button setup (3 button for use with Proffieboard only) and is almost a direct swap (with slight modification to the plastic chassis) on most LGT/Nexus cores. At least one additional wire must be added to use it as a multi-button configuration.

Installation Tips:

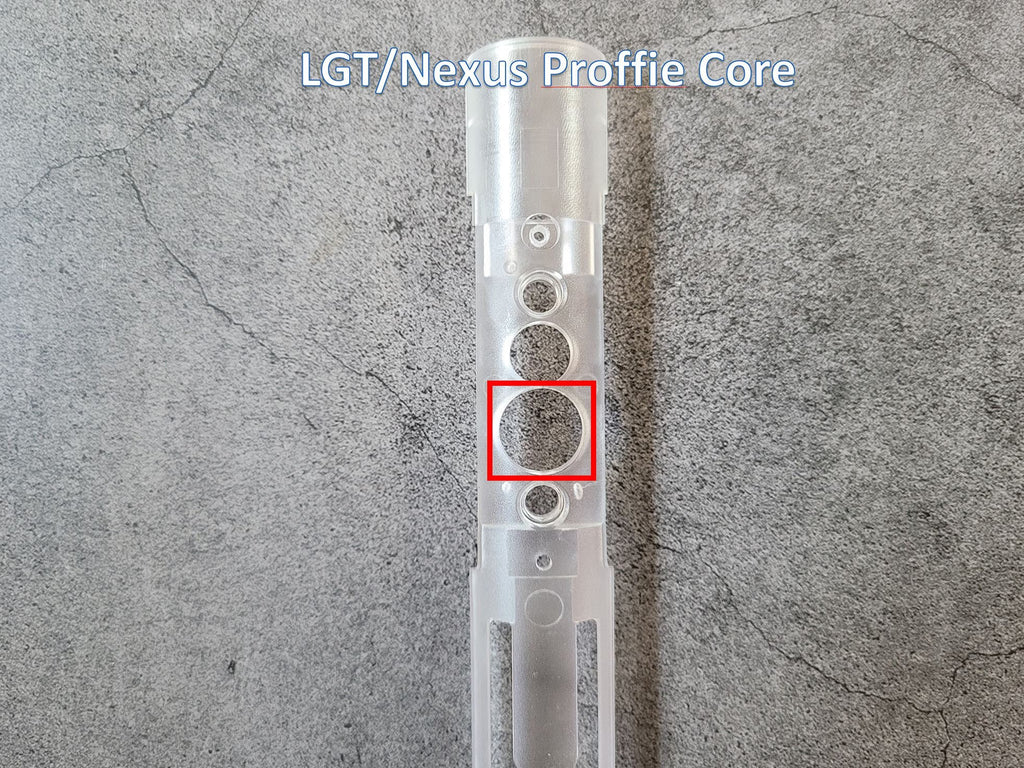

The only required modification to use is to file, grind or cut, the switch area into a square/rectangular shape. See photos for examples. With a standard square hand file it took me 7 minutes to file away the excess material and clean the edges with an Xacto blade.
