TSM Dual Micro Tactile Switch PCB


This listing is for a TSM dual micro tactile switch PCB

I designed these switch PCB's to support up to two 4mm x 4mm micro tactile switches. I wanted them to be small enough that they could be used in a variety of applications, either in a switch box or with the use of plungers via holes drilled into the hilt, for us do it yourself people ;) They take solder like a dream and make wiring up a two switch solution so very easy!

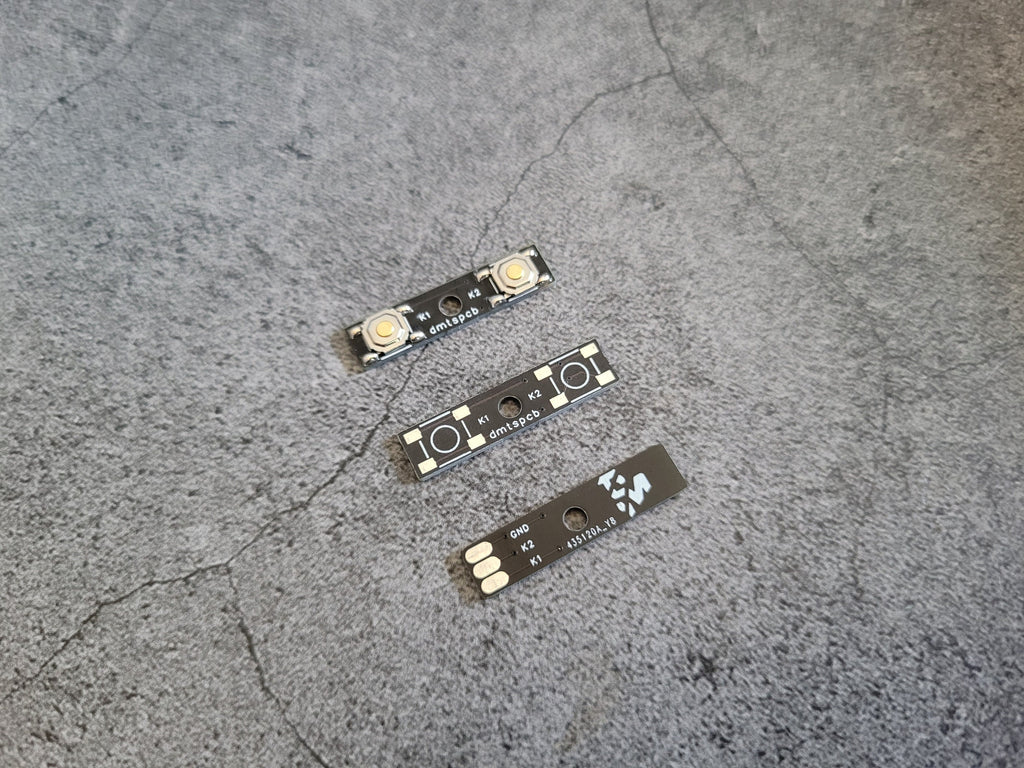

A soldered example is shown in the photos as is the back of the PCB.


Distance from switch center to center - 16mm (0.63")
PCB Length - 25.40mm (1")
PCB Width - 6.14mm (.24")
PCB Height - 1.23mm (0.04")
