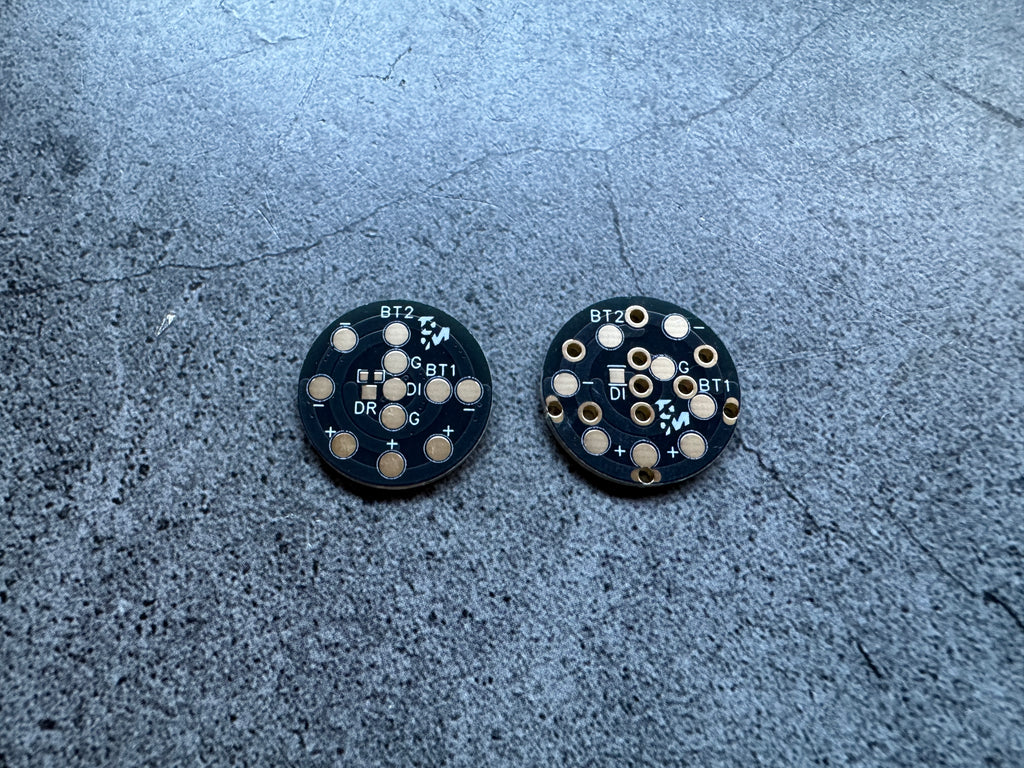

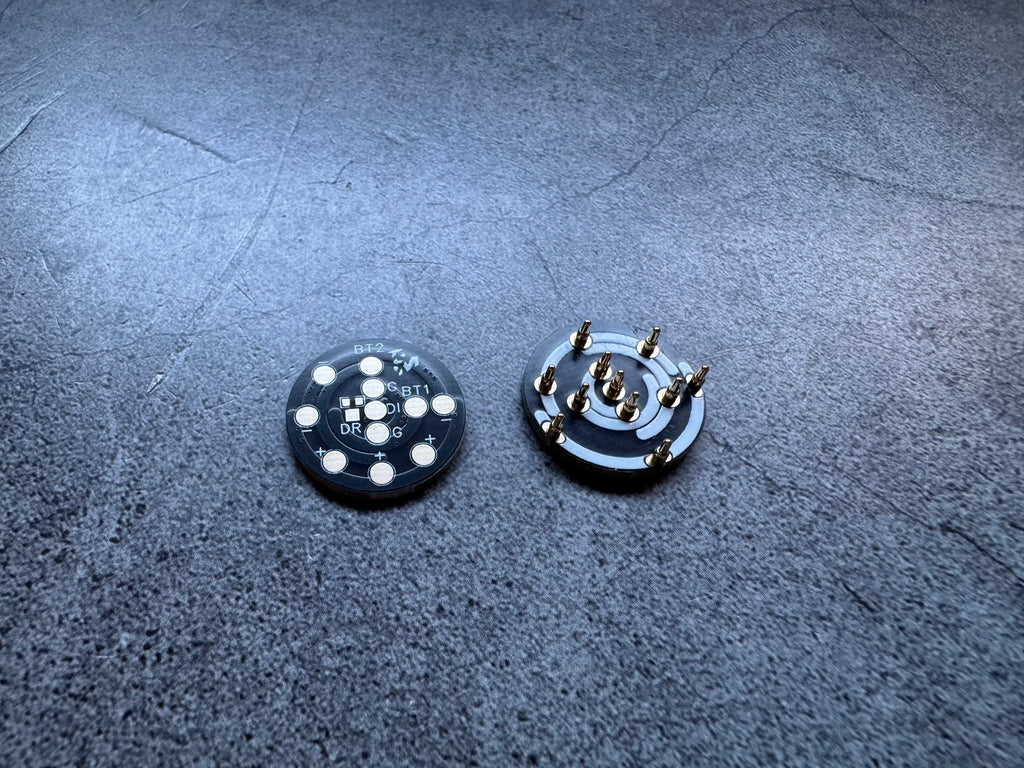

These removable chassis PCB's make completing a more complex install easier than ever! With 3 positive pins, 3 negative pins, 2 switch pins, 1 common ground for the switches, and 1 data line.
These PCB's are made with thick copper traces and then gilded in gold to further increase their efficiency. The PCB is 1.67mm thick and have a 20.7mm outer diameter which allows for solid spacing and a reduction in shorts should your pins not be soldered exactly straight in the holder and the white and black trace design also adds a bit of unique flair to the build.
Specifications:
20.7mm outer diameter on both PCB's.
1.67mm PCB thickness
11 thru hole pogo connection points
